AUDIO ACCESSORIES


SPEAKER CABLE
TAD-SC020M
TAD-SC025M
TAD-SC030M
INTER CONNECT CABLE
TAD-IC010XM
TAD-IC015XM
TAD-IC015XMLTD

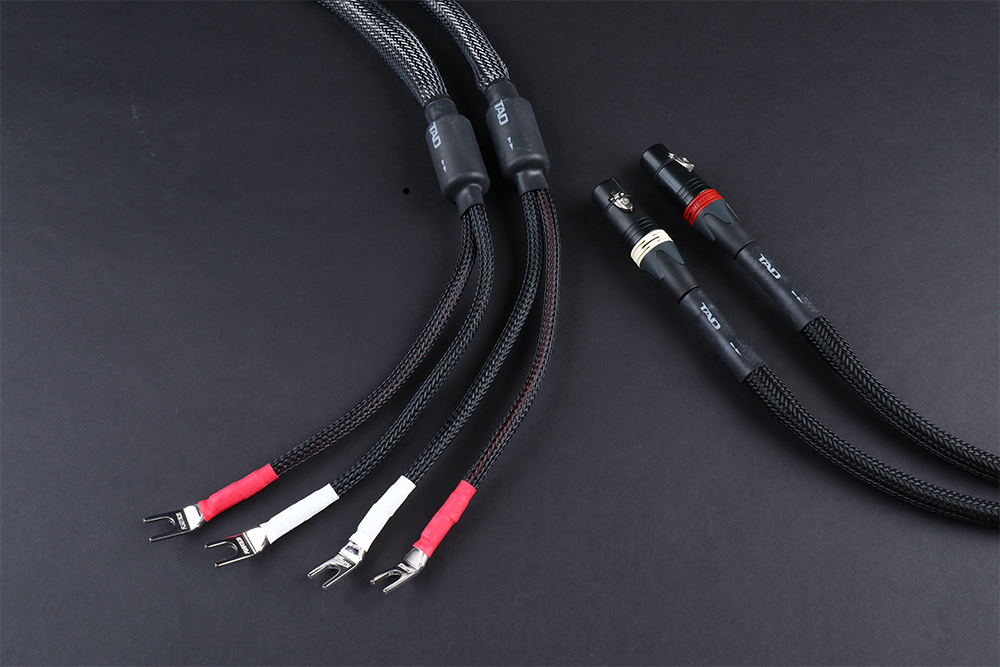

Oxygen-Free copper wires made by the Dip-Forming process are used for these cables to transmit pure audio signals without signal degradation.
Additionally, since these cable have shield structures wound with magnesium alloy foil, they have abilities to absorb vibration and shield electromagnetic waves.
The Fabric of the outermost shell of the speaker cable is knitted from 0.25 mm PET (polyethylene terephthalate) monofilament yarn and that of the inter cable is knitted from 0.28mm partially fluorinated semi-crystalline polymer (ECTFE ) monofilament yarn.
Both fabric can release the cable from the mechanical stresses coming from the installed environment and support pure signal transmission.

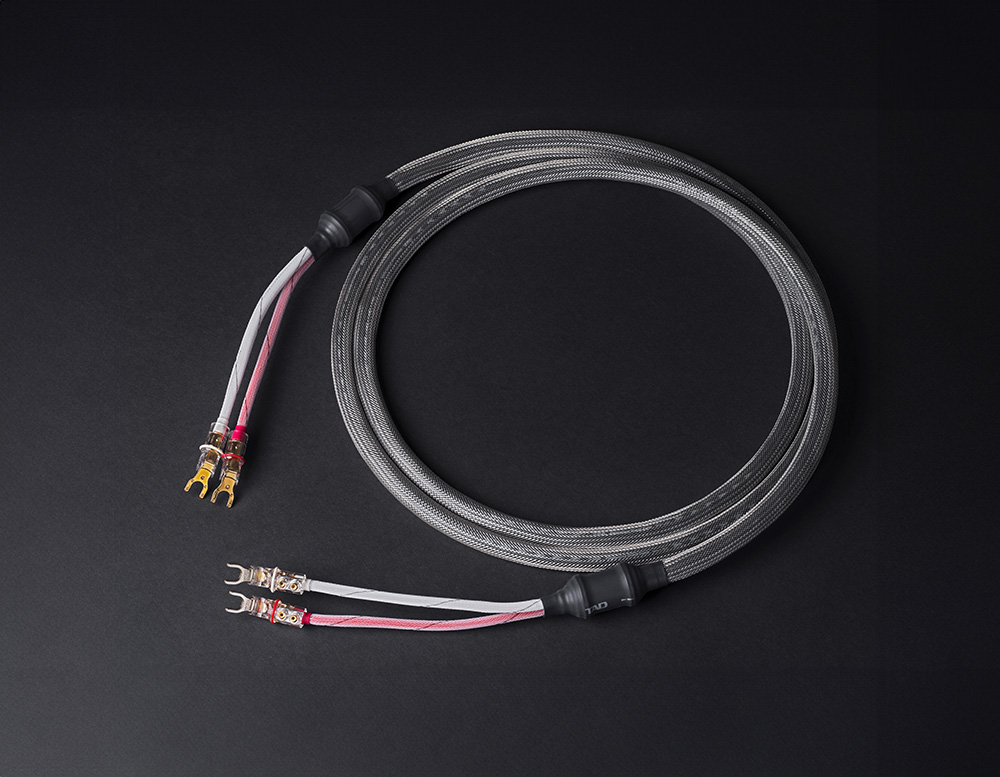

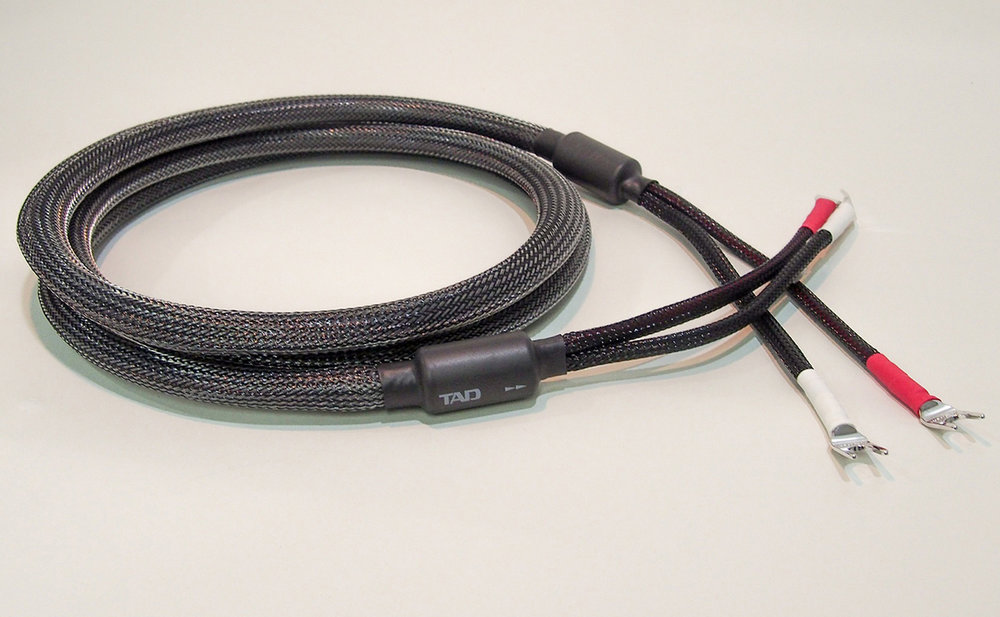

SPEAKER CABLE

Specifications
Length:
• TAD-SC020M: 2.0 m
• TAD-SC025M: 2.5 m
• TAD-SC030M: 3.0 m
Terminal:
• Y type
• Internal width 8.2 mm
• Outside width 13 mm

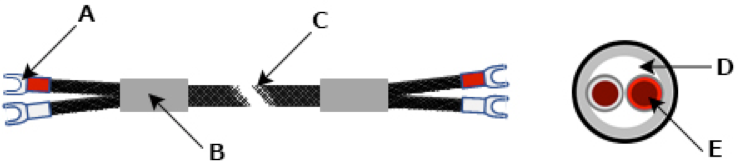

A:Robust pure copper cutting Rolled plated Y lug terminal
B:Pure magnesium cutting filter
C:Exterior braid knitted from 0.25 mm polyethylene terephthalate monofilament yarn
D:Mg Shield for each conductor shield structure
E:DF-OFC Extra fine stranded wire

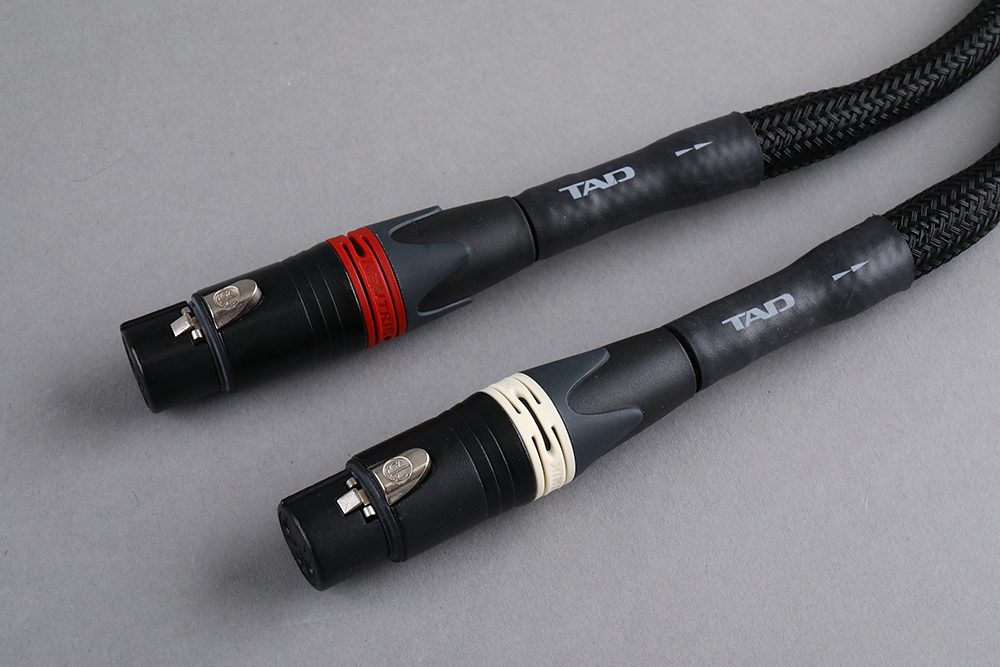

INTER CONNECT CABLE

Specifications
Length:
• TAD-IC010XM: 1.0 m
• TAD-IC015XM: 1.5 m

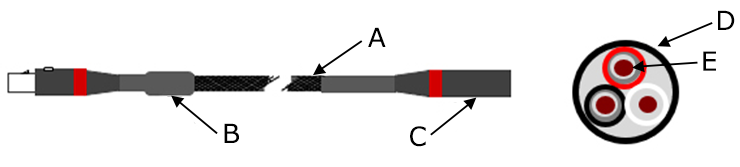

A:Exterior braid knitted from 0.28mm partially fluorinated semi-crystalline polymer (ECTFE ) monofilament yarn
B:Magnesium alloy filter
C:NEUTRIK NC3FXX connector
D:Mg Shield for each conductor shield structure
E:DF-OFC Extra fine stranded wire

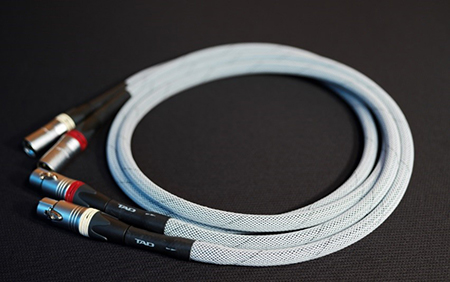

Limited Version

Specifications
• TAD-IC015XMLTD: 1.5 m NEUTORIK XX-HE Connector XLR type

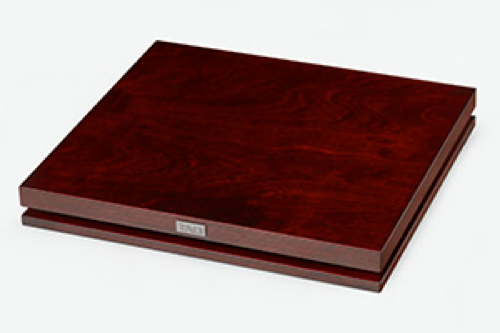

AUDIO BOARD

TAD-ZZ011-WNNo Longer in Production
TAD-ZZ012-WN
TAD-ZZ013-WNNo Longer in Production
TAD-ZZ014-WN

Audio dedicated board that draws the well float structure to the utmost, fuses TAD sound philosophy, realizes distortion-free sound not only for Electronics products, but also for Speakers and Turntables.
Finnish birch laminate board is adopted as the board material.
Birch wood is an excellent material with superior water resistance, heat resistance, durability and strength. TAD speaker systems utilize this same material for internal structural supports due to its high rigidity.
Additionally, each plywood layer is laminated alternately, improving its deflection strength.
The Finnish Birch used in this product is the world's hardest and strongest hardwood material, and is often used for high-end furniture.

TAD-ZZ014 has a new well float structure to suppress the vibration of the top and bottom in order to make the sound image clearer and make the bass more powerful.

Specifications

Model
Number
Size Weight Load Bearing
Capacity
Material Recommended
Use
TAD-ZZ011-WN 480 mm (W)
55 mm (H)
450 mm (D)
7.0 kg 150 kg Finnish Birch TAD-M1000
TAD-D1000MK2 / TAD-DA1000
TAD-M2500MK2
TAD-D600 / TAD-C600 (main unit)
TAD-E1TX
TAD-ST1 / TAD-ST2 / TAD-ST3 (spike area)
TAD-E1 (spike area)
TAD-ZZ012-WN 350 mm (W)
55 mm (H)
450 mm (D)
5.2 kg 150 kg Finnish Birch TAD-D600 / TAD-C600 (power supply unit)
TAD-CR1
TAD-CE1
TAD-ME1
TAD-ZZ013-WN 600 mm (W)
55 mm (H)
500 mm (D)
9.0 kg 150 kg Finnish Birch TAD-R1MK2
TAD-M600
Turntable support (non-TAD)
TAD-ZZ014-WN 480 mm (W)
55 mm (H)
450 mm (D)
7.0 kg 150 kg Finnish Birch TAD-M1000
TAD-D1000MK2 / TAD-DA1000
TAD-M2500MK2
TAD-D600 / TAD-C600 (main unit)
TAD-E1TX
TAD-ST1 / TAD-ST2 / TAD-ST3 (spike area)
TAD-E1 (spike area)

Not available in the USA

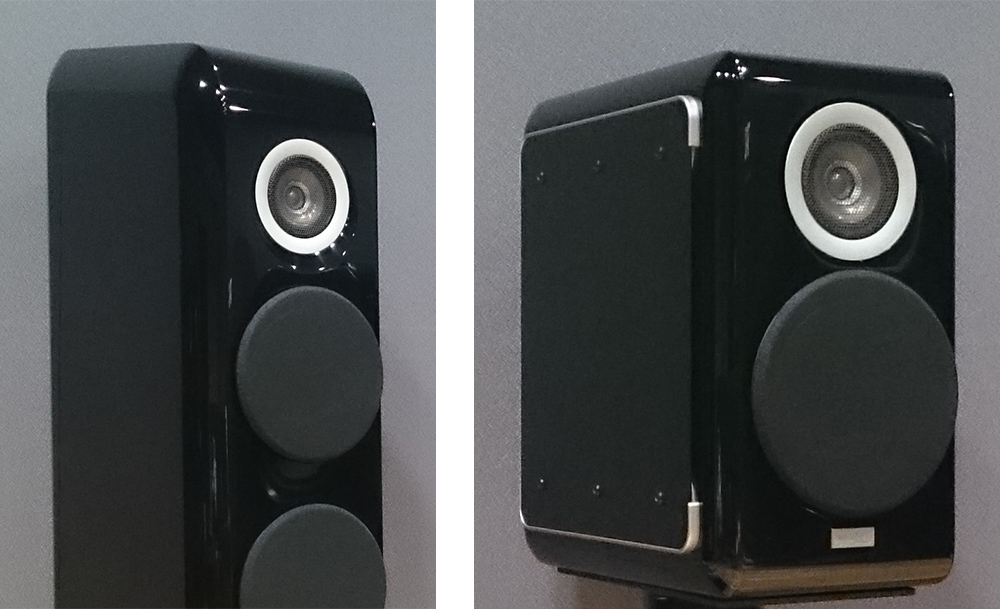

SPEAKER GRILLE

TAD-SG01 (2 pieces per box)

Included items



Optional Speaker Grilles for TAD-E1TX & TAD-ME1

When mounting, the woofer mounting screw must be replaced with the screw included with TAD-SG01.

• Speaker grilles are not included with TAD-E1TX and TAD-ME1.
• Screw replacement tools are not included.

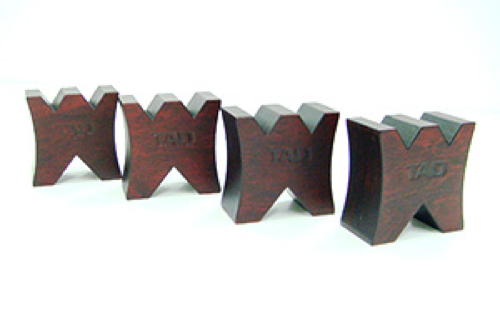

CABLE INSULATOR

TAD-ZZ021-WN (4 pieces per box)

Specifications
Size (per piece): 58 mm (W) x 58 mm (H) x 30 mm (D)
Material: Finnish Birch

This insulator reduces vibration effects from the floor to the cables, as well as enhancing the separation effect from the floor (earth potential).
By supporting the contact points of the round cable and the insulator with the left and right inclined surfaces, the vibration energy can be attenuated.
Finnish birch laminate board is adopted as the board material.
Birch wood is an excellent material with superior water resistance, heat resistance, durability and strength. TAD speaker systems utilize this same material for internal structural supports due to its high rigidity.
Additionally, each plywood layer is laminated alternately, improving its deflection strength.

Structure

Not available in the USA

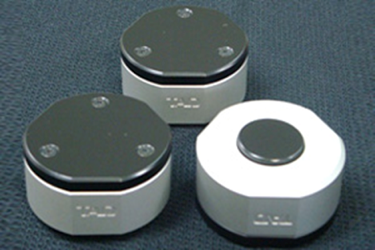

AUDIO INSULATOR / S-TAD INSULATOR
No Longer in Production

TAD-ZS103-S (3 pieces per box)
TAD-ZS104-S (4 pieces per box)

This insulator was developed based on the spike built-in insulator developed for TAD-M2500MK2, TAD-D1000MK2 and TAD-M1000.
By installing these insulators to existing audio equipment, the amount of information and feeling of the sound will increase and the sense of air is improved.
Within its structure, an inverted tip spherical chromoly steel spike is supported at a single point with a special steel with a thickness of 17 mm. High strength chromoly steel is commonly used for automobile engine parts and crankshafts.
By supporting the chromoly steel spike point with a special high strength steel selected by TAD, the weight point is narrowed and the vibration from the feet is controlled.
Moreover, due to the spike structure combined high strength materials, it can safely support very heavy products.

Examples of use

Use with amplifiers, preamplifiers, source units, etc.

Use with amplifiers, preamplifiers, source units, etc.

Specifications
Size (per piece): 58 mm (diameter) x 30 mm (H)
Weight: 320 g (per piece)
Load Bearing Capacity: 40.0 kg (per piece)

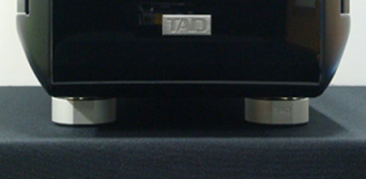

Use with speaker systems

Use with speaker systems
