TAD EVOLUTION ONETAD-E1
Total Music Liberation
TAD Evolution One: a superb speaker system that further expands the possibilities of the single point source. It inherits the TAD Reference One DNA, yet blazes its own trail. With an innovative shape, it delivers totally satisfying, sublime sound quality.
TECHNOLOGY
DRIVE

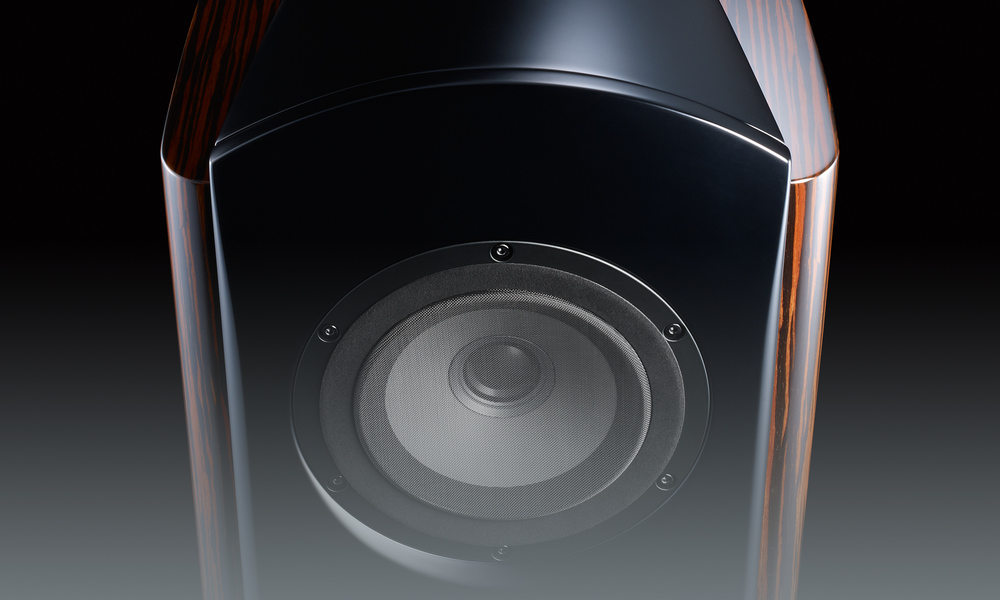

The heart of the TAD Evolution One is the CST* Driver developed from that used in the TAD Reference One, a driver that embodies the single point source concept. The midrange and tweeter are configured coaxially so their directional characteristics conform. The resultant directional response remains uniform across a wide frequency, ensuring extremely stable sound localization and a natural sound field.
*CCST: Coherent Source Transducer
PRECISION
The tweeter diaphragm is made of beryllium, the lightest and stiffest metal available for speaker diaphragms. Formed by TAD’s unique deposition technique, it exhibits high internal loss and smooth frequency response. Achieving an ideal diaphragm shape based on computer analysis, it is capable of reproducing frequencies up to 100kHz. The midrange features an extremely lightweight magnesium diaphragm with high internal loss. Both of these units reproduce sound with virtually no distortion and none of the coloration characteristics of other materials.
STRENGTH
As a woofer requires a high degree of both stability and strength, TAD developed the MACS* diaphragm, made by laminating many layers of Aramid fabric and non-woven fabric for light weight and high stiffness. This shell-shaped diaphragm with an integrated center cap and cone is driven by a large diameter voice coil and neodymium magnet, reproducing rich, clear bass with low coloration. The aero-design chassis is designed to minimize any airflow noise and improve the resolution of bass sounds.
*MACS: Multi-layered Aramid Composite Shell
ELEGANCE
The SILENT* enclosure features a framework of high rigidity birch plywood combined with MDF for high internal loss, achieving an enclosure that blends high strength with low resonance. The enclosure's teardrop shaped rear section further reduces unwanted cabinet resonance as a result of the improved stiffness of the curved panels. Two available finishes, high gloss black, or wood veneer with a closed-pore satin finish, enhance the beauty of the curved cabinet design.
*SILENT: Structurally Inert Laminated Enclosure Technology
ISOLATION
TAD put a great deal of effort into the design of the networks to seamlessly integrate the drive units into a cohesive whole. To eliminate any effects from magnetism and vibration due to the CST and bass drivers, the network filters are located outside of the cabinet. Installed within the high rigidity aluminum base, these networks are isolated both mechanically and acoustically from the influence of the main enclosure, ensuring maximum resolution.
SPECIFICATIOnS
Model No
TAD-E1-WN (Wood Finish)
TAD-E1-K (Piano Black Finish)
Model
3-way bass reflex floor speaker system
Drive Units
Woofer: 18cm cone x 2
Midrange/tweeter: coaxial 14cm cone/3.5cm dome
Performance Data
Frequency response: 28Hz to 100kHz
Crossover frequencies: 250Hz, 2Hz
Required amplifier output: 50W to 250W
Sensitivity: 88dB (2.83V, 1m)
Rated impedance: 4Ω
TAD-E1-WN
TAD-E1-K
Others
Weight: 54kg (1 unit)
Dimensions: 334mm (W) x 1,166mm (H) x 512mm (D)
Accessories
Accessory kit: Spike cone x 3, spike shoe x 3, auxiliary legs (long) x 2,
short cable (single wire short type) x 1,
short cable (single wire long type) x 1,
cleaning cloth, owner’s manual, warranty
